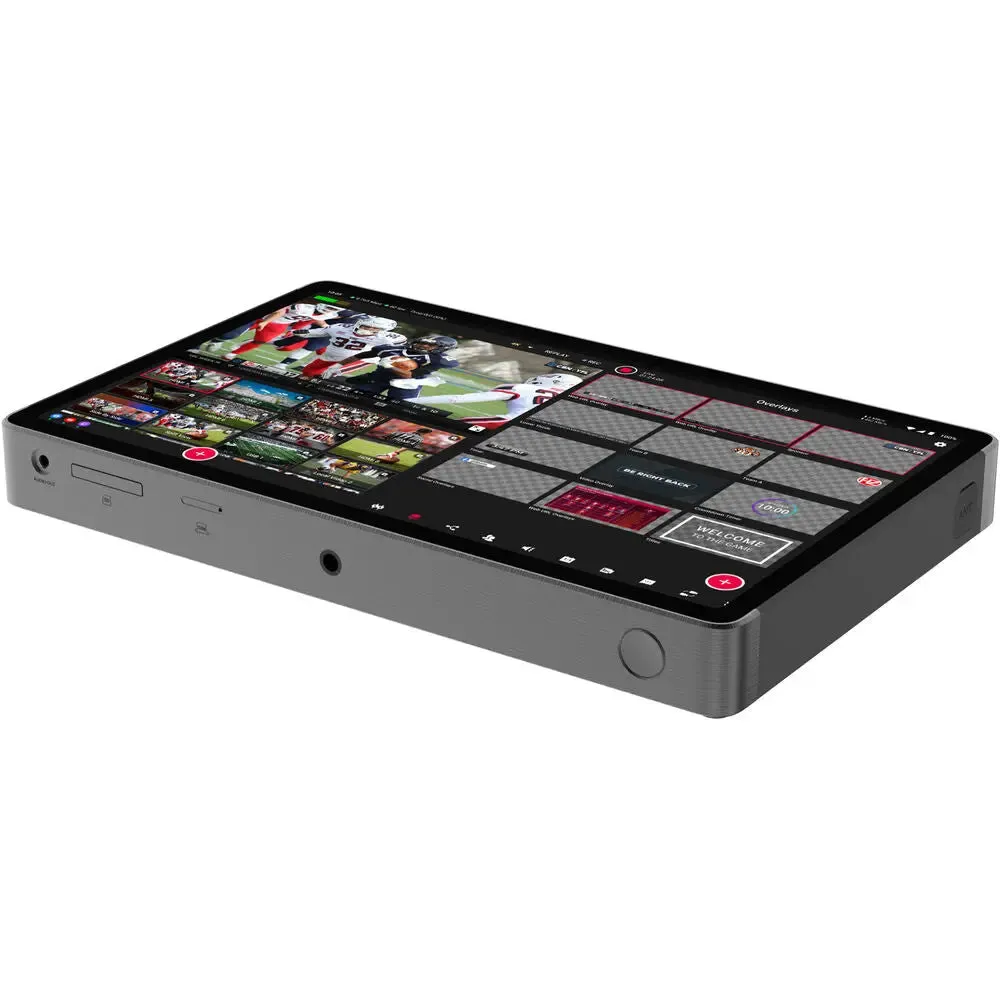

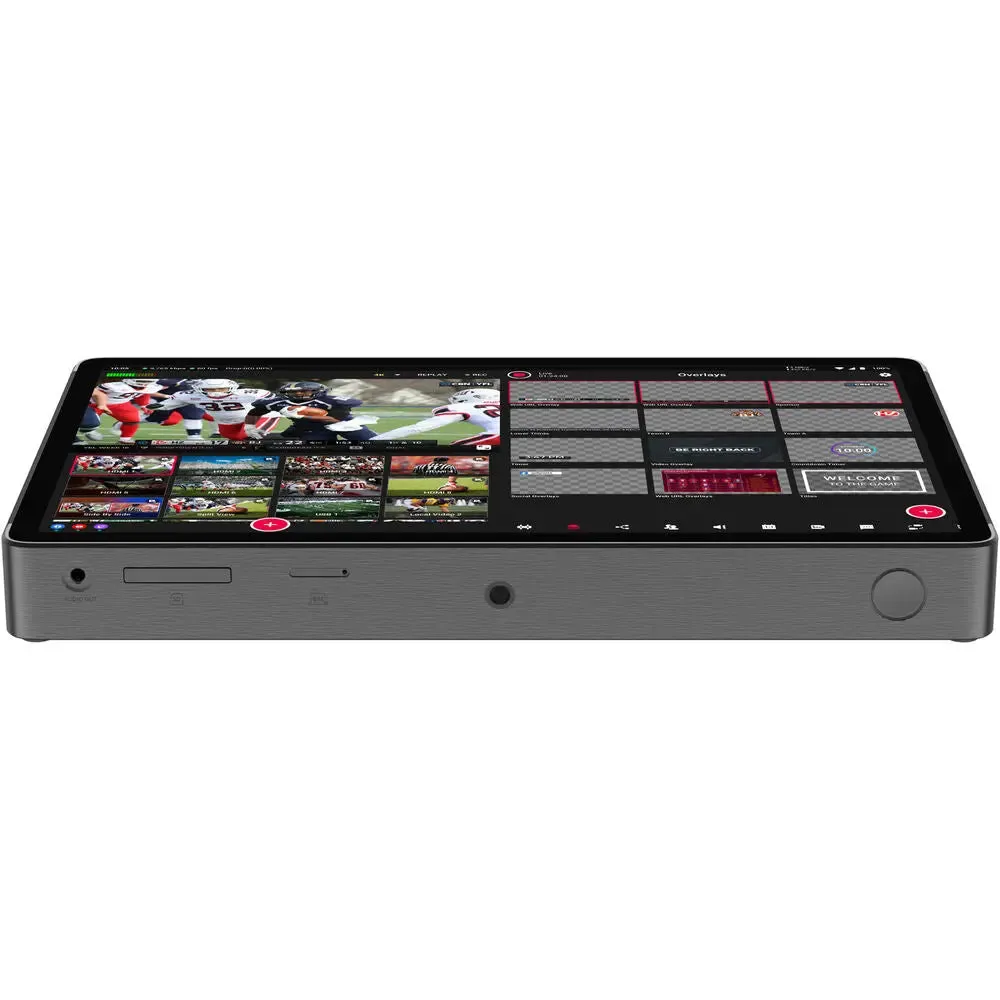

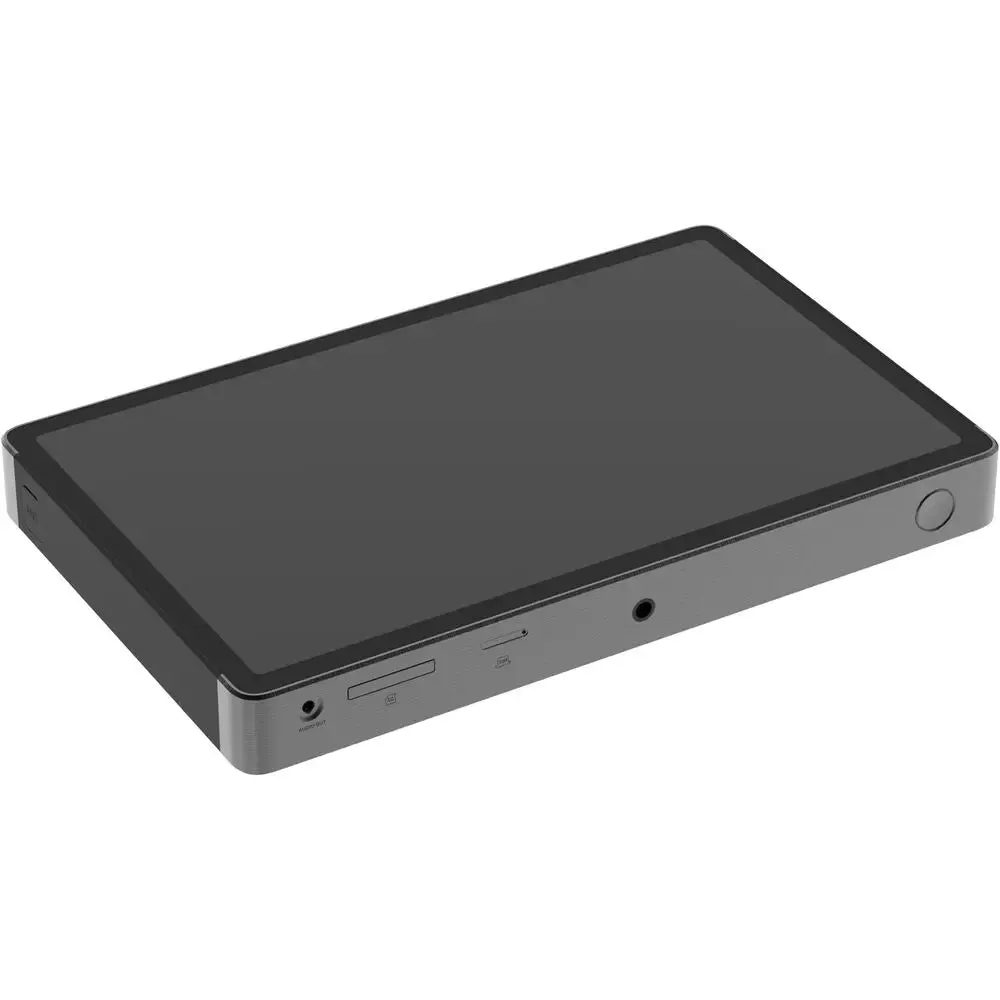

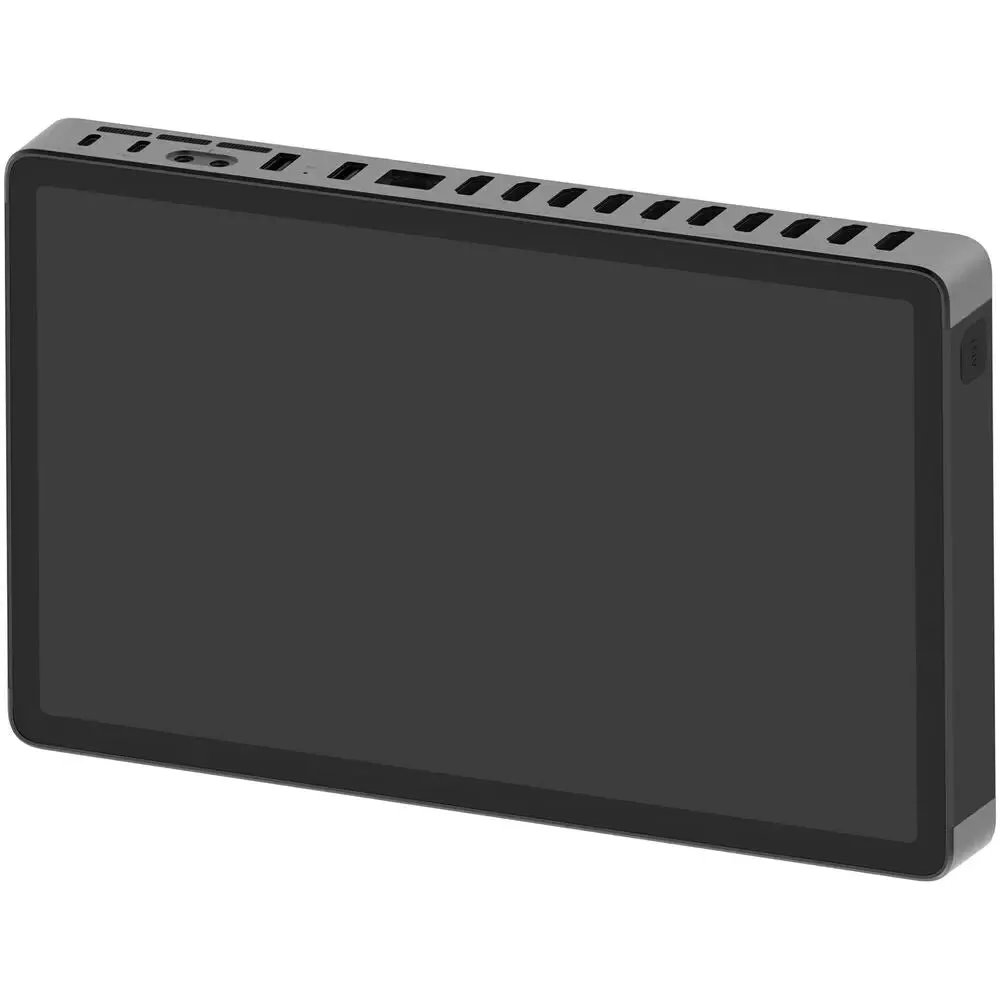

YoloBox Extreme All-in-One Multi-Cam Livestreaming System

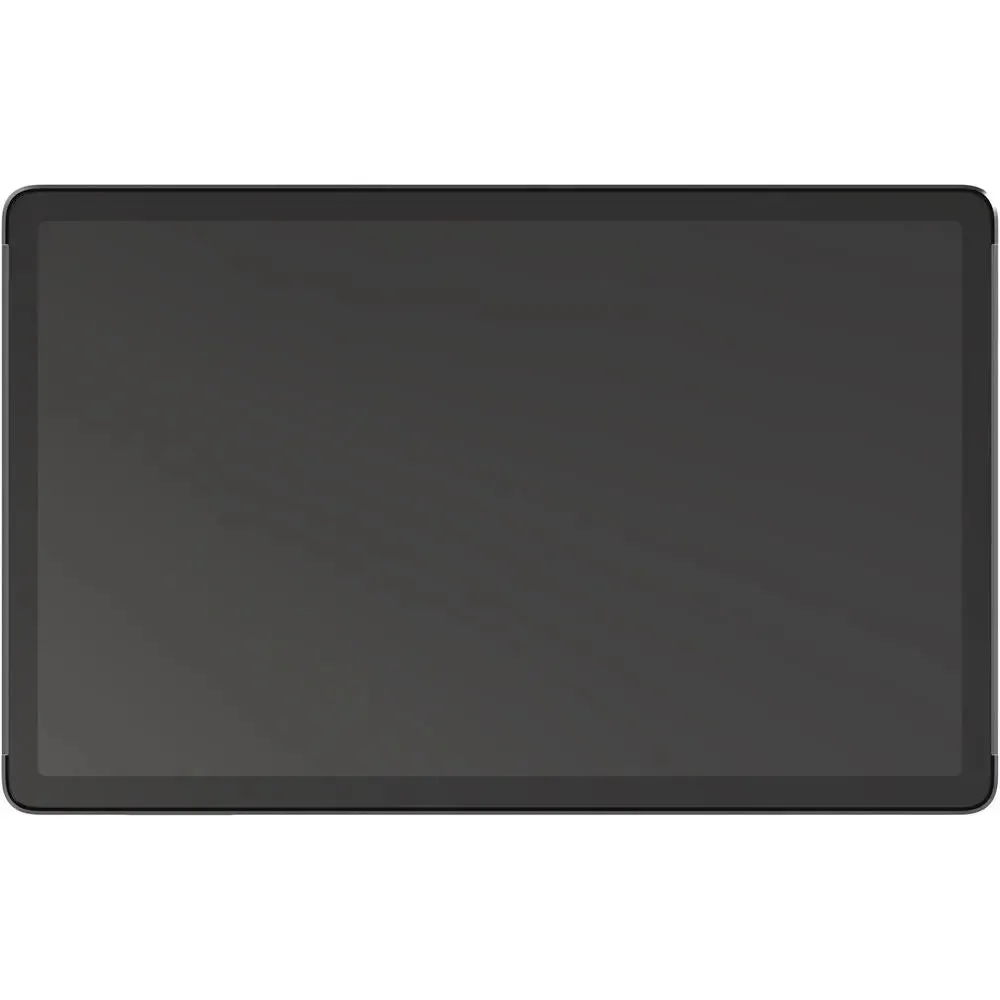

The YoloBox Extreme from YoloLiv easily helps you create a comprehensive live stream production thanks to its all-in-one encoder, streamer, monitor, and recorder design. An upgraded QualComm Snapdragon 8Gen2 CPU enhances its performance in comparison to its predecessor, allowing the Extreme to support up to 20 sources. Broadcast simultaneous UHD 4K video via Wi-Fi 7, RJ45 Ethernet, or 4G LTE with a Nano SIM card and included antennas. The Extreme features eight HDMI, six NDI, USB-C, and one USB-A input ports to connect multiple cameras or devices. The 11.2" touchscreen OLED has a 1000 cd/m maximum brightness for daylight visibility. The device can stream for up to 10 hours at a time thanks to its built-in 10,000mAh battery.

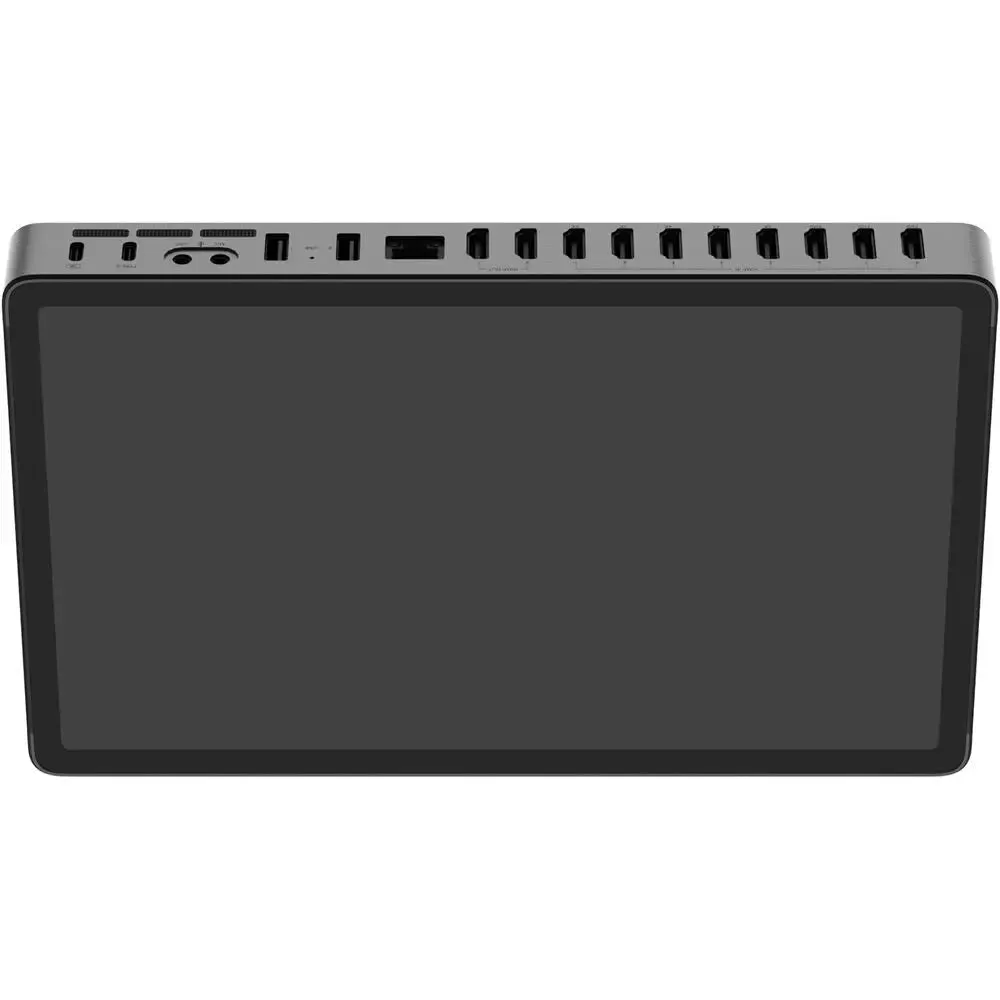

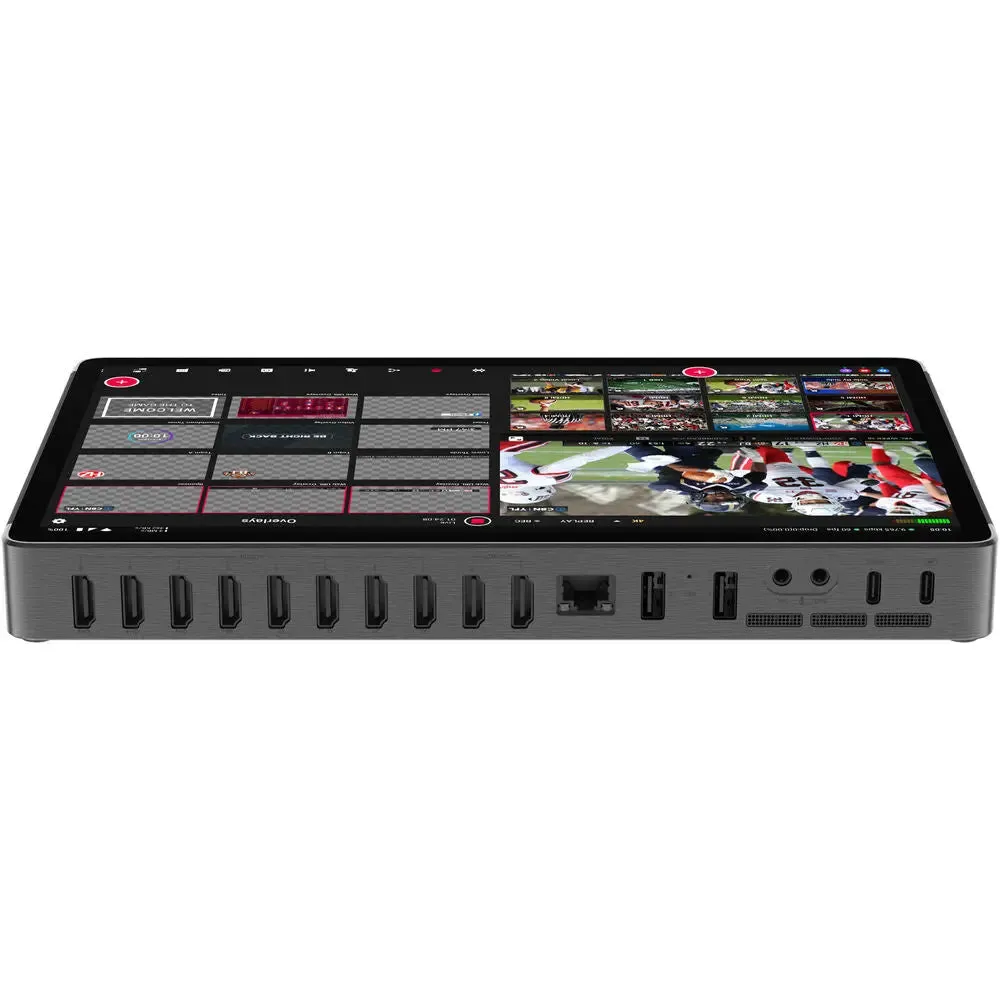

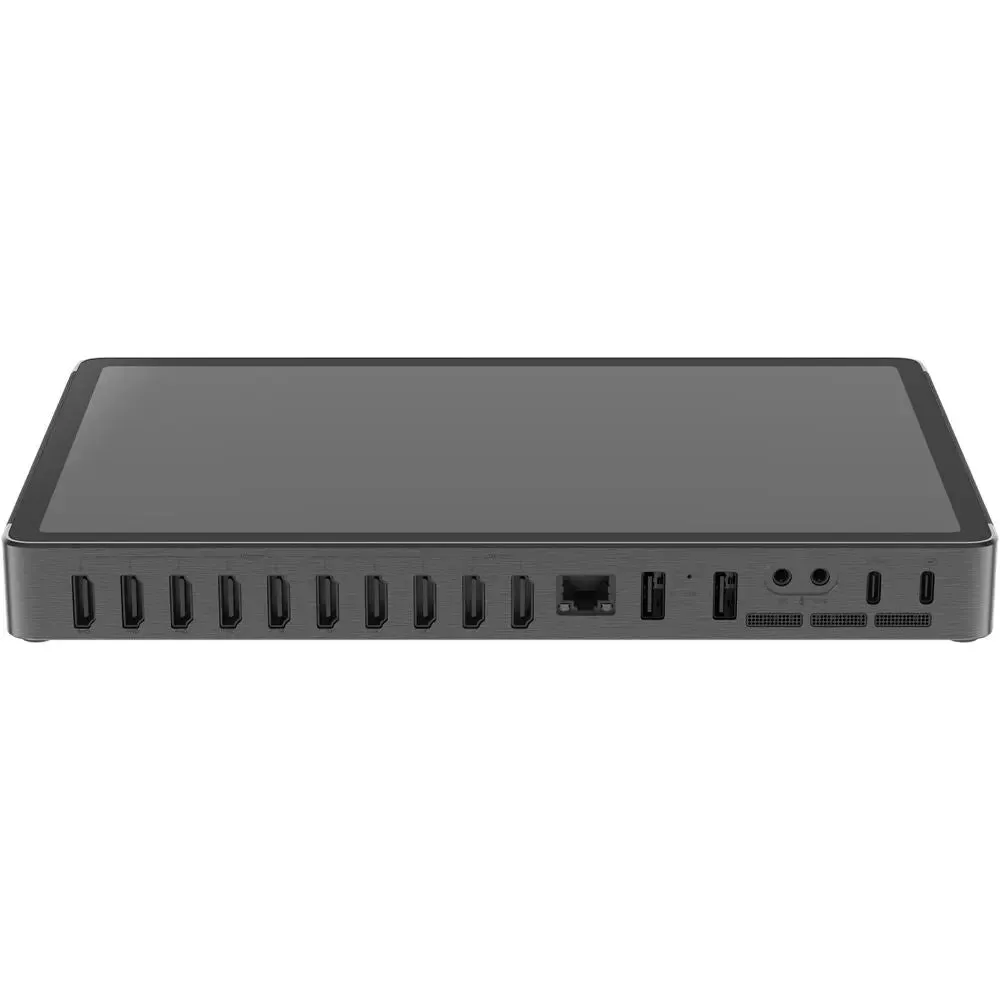

Comprehensive I/O Interface

• Eight HDMI inputs support up to four UHD 4K60 streams with built-in scaler
• Two HDMI outputs have assignable Program/Multiview Out in UHD 4K resolutions
• Ethernet provides a wired and stable internet connection
• Two USB-A inputs support webcams, hard drives, and USB dongles
• Mono Mic input and stereo line input offer wired microphone and audio mixer connectivity
• One USB-C input for additional device connectivity and one USB-C input for charging only
• Audio output for headphone monitoring
• SD card slot, Nano SIM card slot

Virtual I/O

Outside of physical ports, the Extreme supports up to six NDI input sources, two NDI output sources, and SRT streams for Listener/Caller interactions or Inviting Guests.

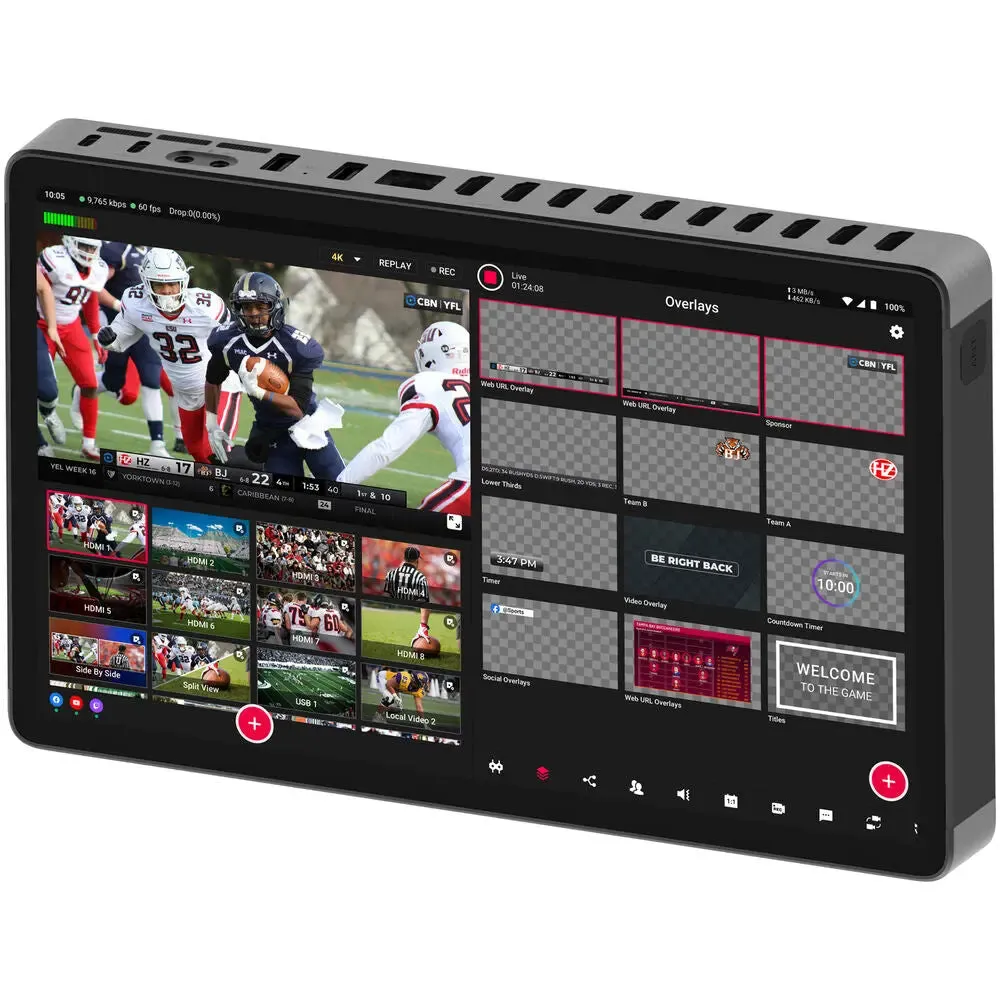

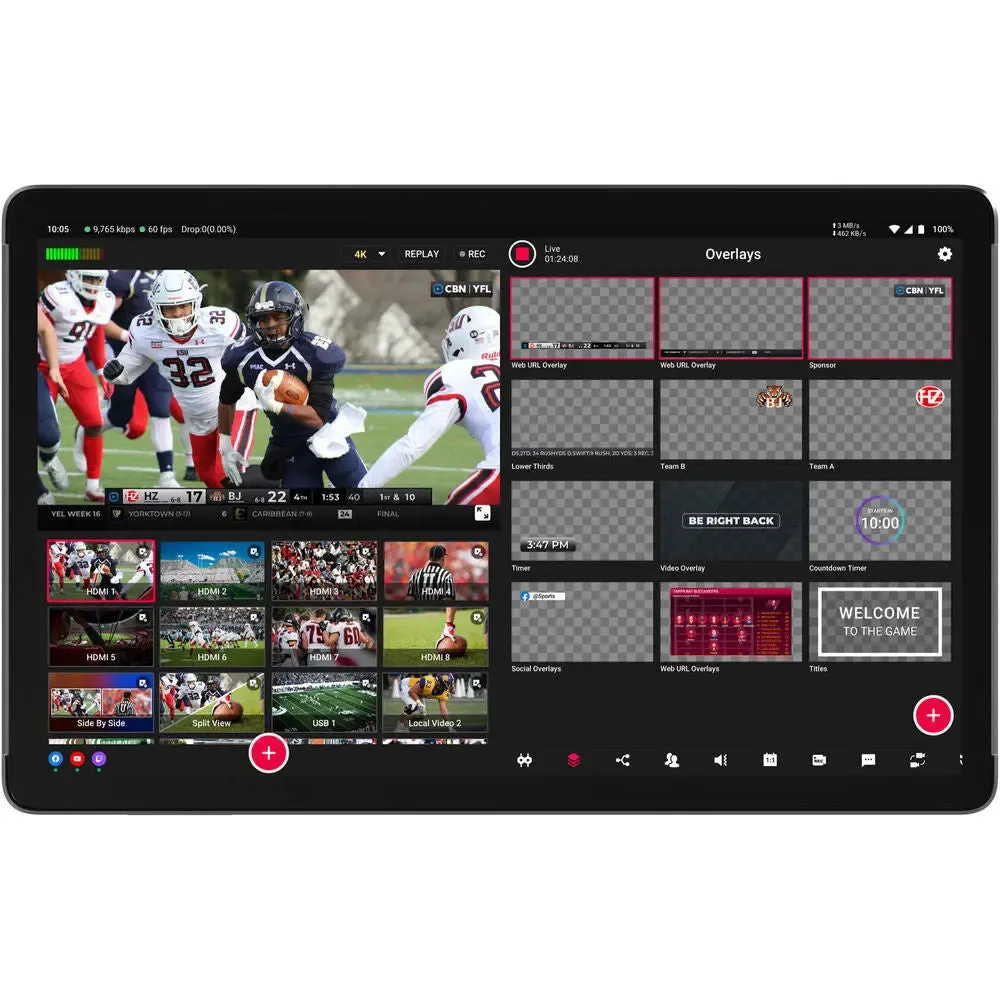

Intuitive Configuration Modes

• Live Switch: switch between multiple sources or fully customized scenes
• ISO Recording: capture all video inputs as well as the program video and save them separately
• Graphic Overlays: add logos, lower thirds, titles, countdown timers, and more
• Multi-Views: customize your stream layout with built-in features
• Scoreboard: built-in scoreboards keep the score in real-time, display game progress, add team logos, and more
• Multi-Cam Replay: create highlight clips with preset durations, intros, outros, and more
• Inviting Guests: bring in remote guests from a web browser on mobile devices
• PTZ Control: preset up to five camera positions and quickly switch between perspectives
• Crop Video: remove margin, resize game capture, zoom in on conferences, and create close-ups
• Chroma Key: add different backgrounds or locations
• AutoSwitch: seamlessly transition between preset camera angles with a defined order and duration

Additional Advanced Features

The Extreme's new user interface adds advanced features as the standard of operation in comparison to the Ultra. Various Overlays, Free Multi-Streaming, Customized Multiview Output, 4K Streaming, Inviting Guests, Web URL Overlay, Video Follow Audio, and Chroma Key are among the features available.

Built-In Audio Mixer

The Extreme now includes an integrated audio mixer function, which is capable of balancing your input audio sources with embedded audio sources. Each audio channel automatically switches as the video changes with Assignable AFV. Mix Minus solos a specific channel or mutes it entirely for precise control. Adjust Audio Delay timing to fix any audio/video sync issues.
