Product Details

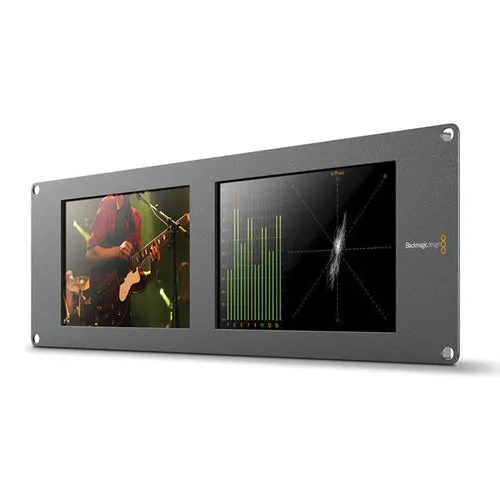

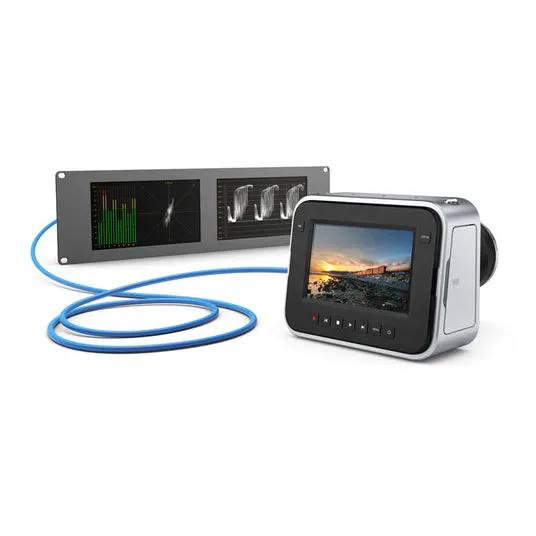

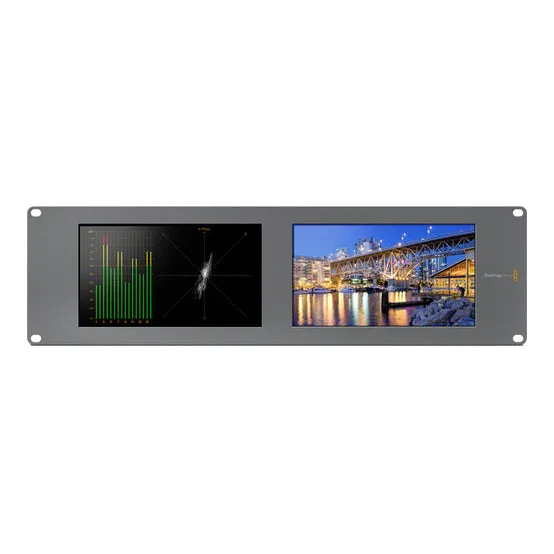

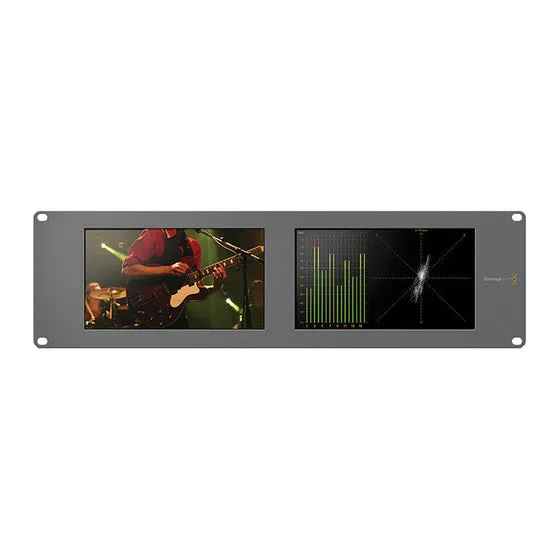

＋The Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors is a monitoring solution for studio and location productions, displaying video with resolutions up to 3840 x 2160 at 30p. It features two 8" monitors each with a loop-through SDI input and output. The inputs are auto-sensing/selecting so you don't have to worry about matching the input format; the monitor will display any supported format that you feed it. You can choose to select to display either the input video or one of six scope displays, while the input video passes through the monitor to downstreamed devices.

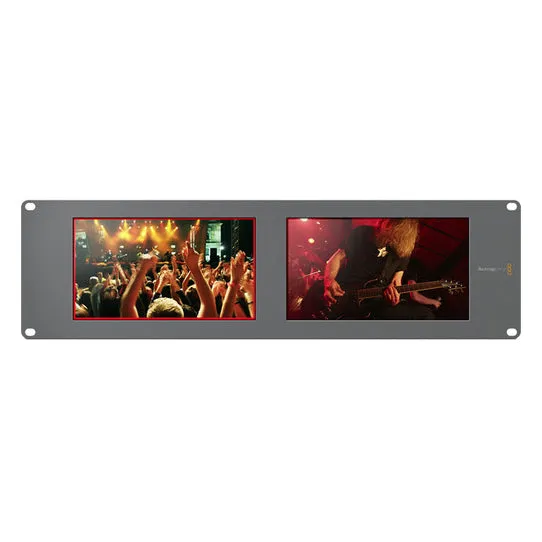

You use the USB connector to initialize the monitor on your network; after that you can control the monitors using the supplied software via the Ethernet connector. This allows you to adjust the monitors' brightness and color as well as select the monitors display mode - video or scope view. The SmartScope Duo 4K also incorporates a Tally display around the border of the image, which works with industry standard Tally systems. The unit takes up three rack height units, but is less than two inches deep (including the connector depth), which makes it well suited for use in production trucks where space is at a premium. The unit also automatically flips the image if you need to install the unit upside down.
Features:
Supports SD/HD/3G/6G-SDI
Auto Format Sensing & Selection
1 x Loop-Through SDI I/O per Monitor

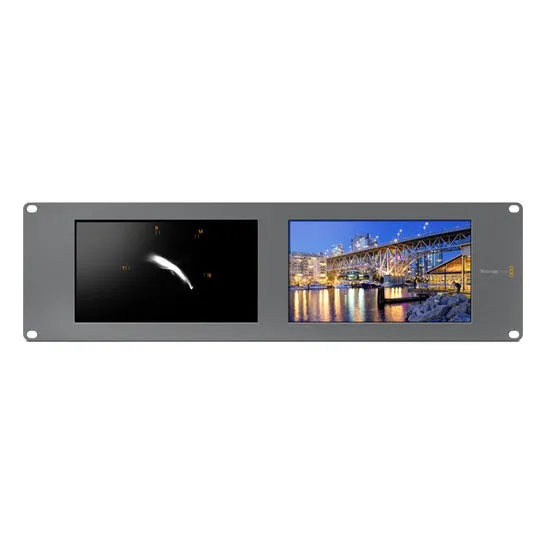

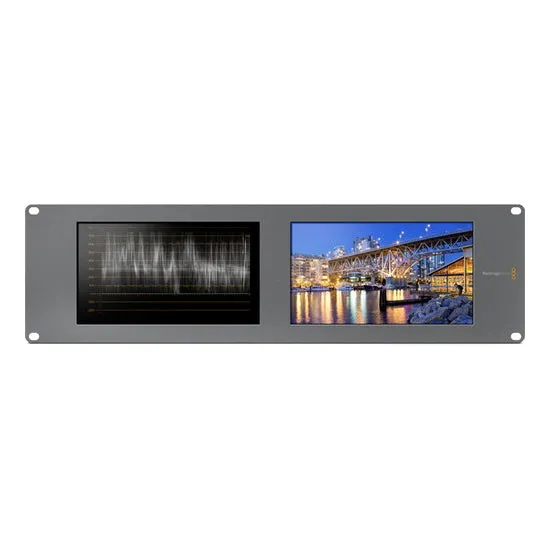

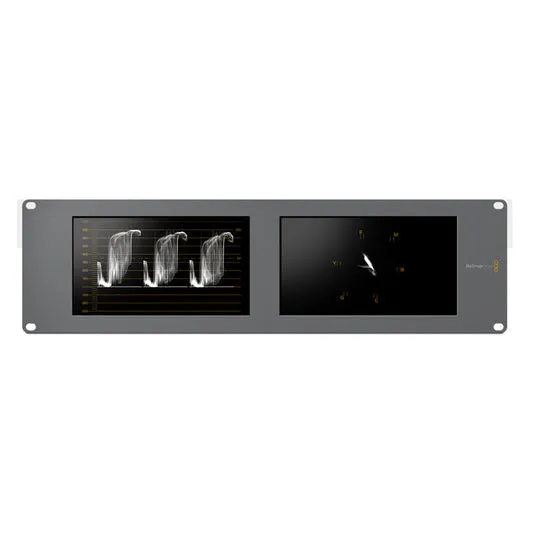

Select Video, Waveform, Vectorscope

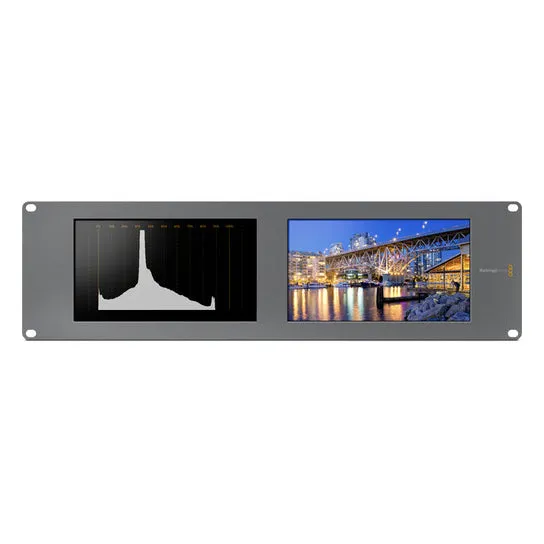

RGB Parade, YUV Parade, Histogram
Audio Phase & Levels
Software Control via Ethernet
Industry Compatible Tally System
3 Rack Unit Size for Mounting
Auto Orientation Sensing & Image Flip
Specifications:
| Panel Type | TFT LCD |
| Display Size | 8.0" / 20.3cm |
| Screen Resolution | 800 x 480 |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Image Controls | Image Flip, Waveform |
| Video | 2 xBNC (6G-SDI)Output 2 xBNC (6G-SDI)Input |
| Embedded Audio | SDI: 16-Channel |
| Audio | None |
| Built-In Speaker | None |

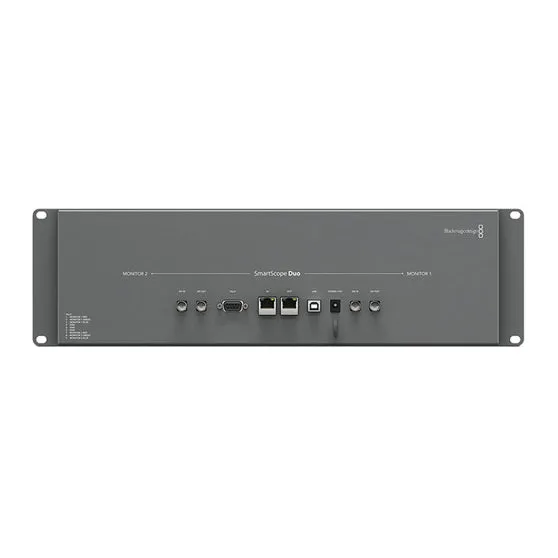

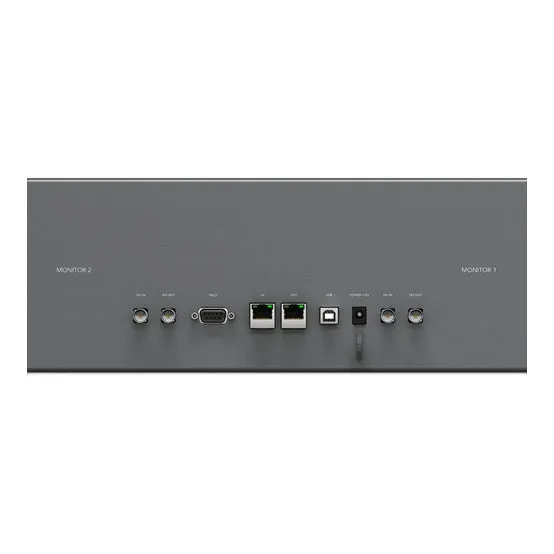

| Other I/O | 2 xLAN (RJ45) 1 xUSB 2.0 (USB Type-A) 1 xTally (DE-9/DB-9) |
| Card Slot | None |
| Video Format | SDI (4:4:4) UHD 4K: 23.98/24/25/29.97/30 DCI 2K: 23.98/24/25 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24/25/29.97/30 1080i: 50/59.94/60 720p: 50/59.94/60 480i 576i |
| DC Input Power | 12to15VDC |
| Battery Type | None |
| Power Consumption | 20W (Maximum) |
| Rack Form Factor | 3 RU |
| Operating Humidity | 0 to 90% |
| Operating Temperature | 32 to 104F / 0 to 40C |
| Storage Temperature | -4 to 113F / -20 to 45C |

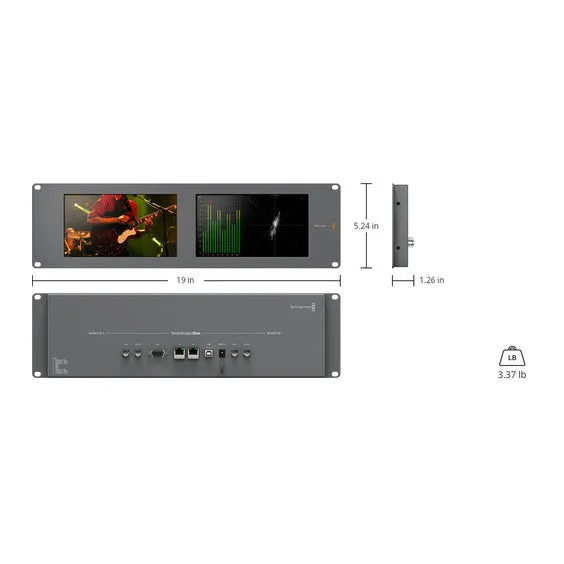

| Dimensions (W x H x D) | 19 x 5.2 x 1.3" / 48.3 x 13.3 x 3.2cm |
| Weight | 3.37lb / 1.53kg |
| Package Weight | 4.85 lb |
| Box Dimensions (LxWxH) | 19.3 x 6.6 x 2.9" |
PackageContents:
1x Blackmagic Design SmartScope Duo 4K Rack-Mounted Dual 6G-SDI Monitors
1x Power Supply
